An isolation transformer is a type of electrical transformer designed to provide electrical isolation between the primary and secondary windings. This isolation is achieved through separate windings that are not electrically connected, ensuring that there is no direct electrical path between the input and output circuits. This feature is particularly important for safety, as it helps prevent electric shocks and protects sensitive equipment from voltage spikes and other electrical disturbances.

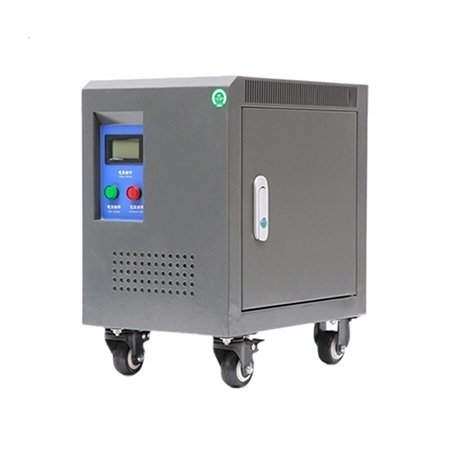

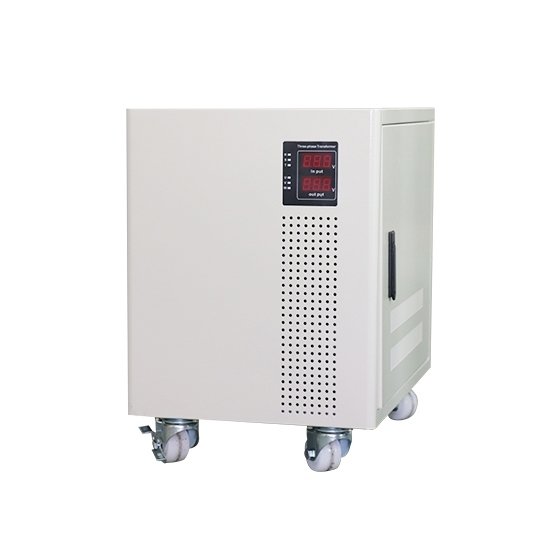

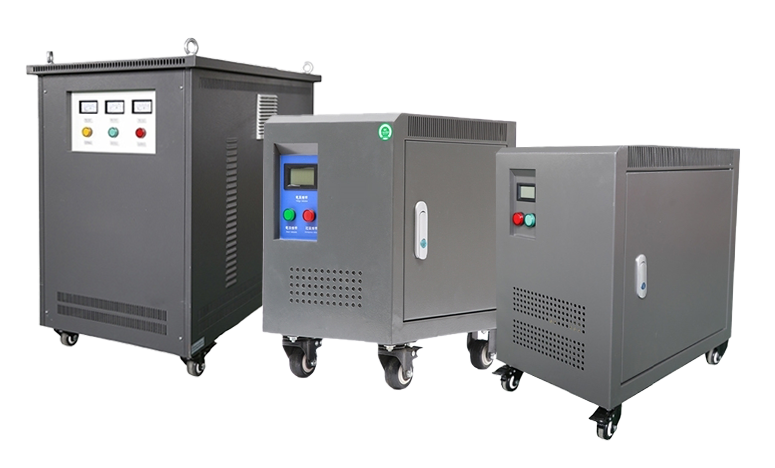

Isolation transformers are available in a range of capacities, from 5 kVA to 1000 kVA, and can be used as step-up or step-down transformers. They can convert voltages from single-phase to single-phase and three-phase to three-phase. These transformers are manufactured with high-quality materials, such as cold-rolled oriented silicon steel sheets for the core, which offer good heat dissipation and low loss characteristics. Additionally, they often feature high-temperature enameled wire and excellent insulating paper, which enhance their performance and safety.
One of the key benefits of isolation transformers is their ability to reduce electrical noise and interference. By isolating the input and output circuits, they can prevent the propagation of common-mode noise, which is particularly useful in applications involving sensitive electronic equipment. This isolation also helps in mitigating ground loops, which can cause unwanted noise or interference in electrical systems.
When using an isolation transformer, it is important to follow proper safety guidelines. This includes determining the correct transformer specifications based on the power requirements of the equipment, verifying the transformer's condition for any signs of damage, disconnecting the power supply before making connections, and ensuring secure connections on both the primary and secondary sides. Regular maintenance and inspection are also crucial to ensure the transformer operates safely and efficiently.
Isolation transformers play a vital role in providing electrical safety, reducing noise and interference, and protecting sensitive equipment. Their customizable nature and ability to isolate electrical circuits make them suitable for a wide range of applications, from residential to industrial settings.
